Automatic Paint Line for Industrial Turnkey Coating Solutions
Automated painting lines integrate precision surface preparation, automated spray application, environmental control, and high-efficiency curing technologies to deliver consistent, high-yield surface finishes.
-
![Automatic UV Paint Line]()
Automatic UV Paint LineOur Automatic UV paint line delivers high-precision automated coating for plastic, wood, and composite substrates.view more -

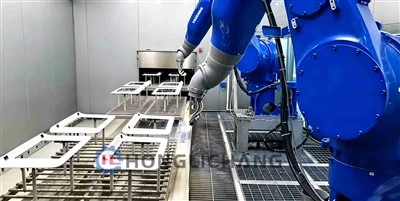

![Water-based Automatic UV Paint Line]()
Water-based Automatic UV Paint LineWater-Based Automatic UV Paint Line is an automated coating system with stainless steel corrosion-resistant structures, closed-loop climate control, and gradient drying, engineered for...view more -
![Robotic Paint Shop]()
Robotic Paint ShopThe Robotic Paint Shop is a high-precision automated coating system designed for 3C electronics, delivering uniform finishes, flexible production, and superior surface quality for complex...view more -
![6 Axis Spray Robot]()
6 Axis Spray Robot6 Axis Spray Robot is a six-axis explosion-proof system designed for automated industrial painting. It offers high-precision repeatability and multi-angle flexibility, ensuring stable finishes on...view more -
![Automatic Spray Booth]()
Automatic Spray BoothAutomatic Dry Spray Booth is an eco-friendly coating solution featuring multi-stage dry filtration and automatic pressure control.view more -

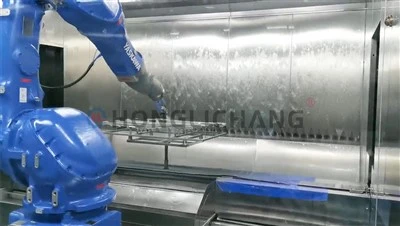

![Painting Equipment]()
Painting EquipmentPainting Equipment, a high-performance automated coating solution, integrates closed-loop servo control and eco-friendly purification. It delivers exceptional precision, high transfer efficiency,...view more -
![Reciprocating Painting Line]()
Reciprocating Painting LineReciprocating painting line is an automated coating system powered by a servo-driven mechanism.view more -

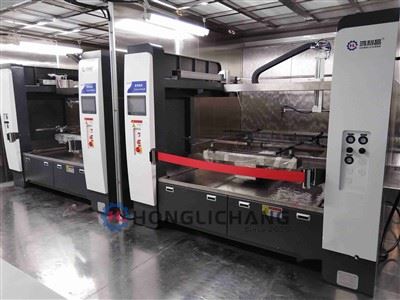

![Automatic Switch Panel Painting Line]()
Automatic Switch Panel Painting LineAutomatic Switch Panel Painting Line is a high-precision automated coating system tailored for switch panels.view more -
![Helmet Paint Line]()
Helmet Paint LineHelmet Painting Line is a custom automated coating system designed for motorcycle, sports, and safety helmets.view more -
![Automatic Paint Shop]()
Automatic Paint ShopAutomatic Paint Shop configured as a modular reciprocating production line for batch-scale liquid coatings, utilizing fixed reciprocating spray mechanisms, electrostatic atomization, and thermal...view more
Technical Specifications
|
Parameter |
Engineering Specification & Standard |
|
Max. Paint Window Option |
1800 × 2000 × 900 mm (W × H × D) |
|
Pitch Distance |
Dog Distance: 1000 mm; Carrier Pitch: 2000 mm |
|
Technical Availability |
98% (for Paint Shop and Application) |
|
Cycle Time |
Less than 52 seconds per Jig-to-Jig |
|
Air Make-Up Unit (AHU) |
Ensures temperature and relative humidity control inside the spray booth |
|
AHU Operating Conditions |
Maintains 23°C ± 3°C and 60% RH ± 10% |
|
Air Flow Speed |
Minimum 0.35 m/s in the painting zone |
Complete Painting Systems
- Automatic Paint Shop
- Robotic Paint Shop
Automated Spraying Equipment
- 6 Axis Spray Robot
- Automatic Spray Booth
- Painting Equipment
Specialized Production Lines
- Automatic UV Paint Line
- Water-based Automatic UV Paint Line
- Reciprocating Painting Line
- Automatic Switch Panel Painting Line
- Helmet Paint Line
Key Engineering Advantages
Turnkey System Integration
Complete EPC capability covering engineering design, equipment manufacturing, installation, commissioning, and production validation.
Flexible Material & Product Compatibility
Supports ABS, PC, PP, composites, metals, and other industrial substrates with customized spraying and curing processes.
Stable Surface Quality Control
Class 10,000 cleanroom environment, localized laminar airflow, dust removal, and HVAC control help reduce coating defects and improve first-pass yield.
Intelligent Production Management
Siemens PLC/HMI control, RFID tracking, MES integration, and automatic recipe management improve production flexibility and traceability.
Pre-Shipment Validation (FAT)
Complete assembly, 72-hour continuous mechanical dry runs, PLC automation logic verification, and airflow balance testing (≥0.35 m/s) are performed at our 10,000 sqm facility before shipment.
Process & Parameter Audits
Sensor calibration, curing oven temperature uniformity testing, and fluid delivery pressure verification are conducted to ensure stable production performance.
Quality Management Certifications
Equipment is manufactured under ISO9001, ISO14001, and ISO45001 management systems, with ATEX/IECEx explosion-proof solutions available for hazardous spray areas.
Why Choose Us
20+ Years of Turnkey Coating Experience
Since 2005, we have delivered thousands of automated coating lines worldwide across automotive, electronics, and heavy machinery industries.
Trusted by Global OEMs & Industry Leaders
Proven project success with world-class brands like BYD, BASF, Yanfeng, and Marelli, backed by partnerships with Siemens, Fanuc, and ABB.
Complete In-House Manufacturing Base
Headquartered in Shenzhen with a modern production plant in Heyuan, offering full-process capability from R&D to fabrication and testing.
Global Delivery & Technical Support
Export Packaging & Shipping
Control cabinets and precision components are protected with vacuum-sealed anti-static and moisture-proof packaging. Heavy structures are secured in ISPM-15 certified wooden crates with optimized container loading.
On-Site Installation & SAT Commissioning
Field engineers support mechanical assembly, electrical integration, robot parameter adjustment, site acceptance testing (SAT), and operator training. Typical commissioning takes 3–4 weeks.
Remote Support & Warranty
Includes a 12-month global warranty, 24/7 remote diagnostic support (<2-hour response time), and spare parts assistance using globally standardized brands such as Siemens, Fanuc, ABB, and SMC.
Our Certificates
We are one of the most professional automatic paint line manufacturers and suppliers in China, also support customized service. Please feel free to buy advanced automatic paint line for sale here from our factory. Welcome to contact us for quotation.
