Automotive Paint Shop for Turnkey Automated Coating Solutions
Automotive Paint Shop is a turnkey automated coating system integrating pretreatment, robotic spraying, curing, environmental control, and conveyor automation. Designed for automotive OEMs and Tier 1 suppliers, it provides consistent surface quality and high-efficiency production for plastic parts, interior components, exterior trims, lamps, and metal components.
-

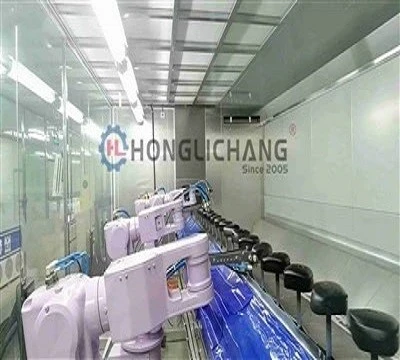

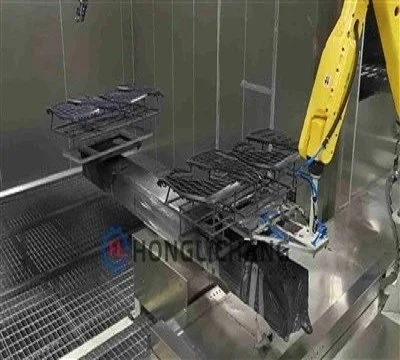

![Airbag Automatic Robot Inline Tracking Painting Line]()
Airbag Automatic Robot Inline Tracking Painting LineAn airbag automatic robot inline tracking painting line is a specialized industrial coating system that uses high-precision multi-axis robots and real-time tracking algorithms to continuously...view more -
![Bumper Paint Line]()
Bumper Paint LineA bumper paint line is a fully integrated surface finishing system engineered for high-volume automotive manufacturing, delivering exceptional coating adhesion, flawless aesthetic finishes, and...view more -
![Hard Coating Plant]()
Hard Coating PlantAn automated UV hard coating plant engineered specifically for automotive components, delivering superior surface scratch resistance, anti-fog performance, and extended durability for exterior and...view more -
![Car Mirror Paint Shop]()
Car Mirror Paint ShopA car mirror paint shop is an automated, high-precision industrial coating facility engineered specifically to process complex automotive rearview mirror housings and dual-material assemblies with...view more -
![Grill Paint Shop]()
Grill Paint ShopThe Grill Paint Shop is engineered specifically for PP automotive grilles, integrating robotic application and workpiece transfer technologies to deliver full-process automation from pretreatment,...view more -
![Car Parts Paint Shop]()
Car Parts Paint ShopA car parts paint shop is a versatile, heavy-duty industrial coating facility engineered specifically to process a wide mix of diverse, irregularly shaped automotive exterior and structural...view more -
![BMC Base Coat Line]()
BMC Base Coat LineAn automated BMC base coat line is a heavy-duty, high-efficiency turnkey system engineered for applying smooth primers onto complex thermoset BMC reflector substrates, integrating robotics and...view more -

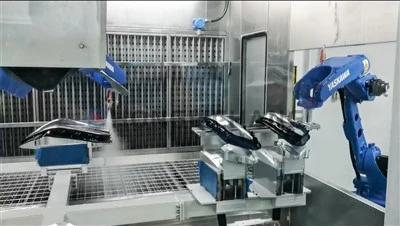

![Headlight Hardcoat Line]()
Headlight Hardcoat LineThe Headlight Hardcoat Line is designed for automated coating of PC headlight and taillight lenses, integrating dedusting, flow or spray coating, IR flash-off, UV curing, cooling and inspection.view more -
![Antifog Coat Line]()
Antifog Coat LineAn anti-fog coating line is an automated continuous manufacturing system that applies and cures specialized hydrophilic chemical layers onto plastic films or rigid substrates to prevent...view more -
![Carlamp IR UV Curing Line]()
Carlamp IR UV Curing LineCarlamp IR UV Curing Line integrates infrared leveling and UV curing into a continuous automated system for coatings, inks, and adhesives.view more -

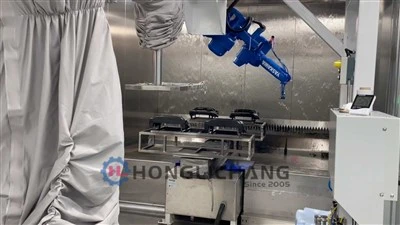

![Piano-Black Interior Paint Shop]()
Piano-Black Interior Paint ShopA piano-black interior paint shop is a specialized industrial coating facility engineered specifically to apply ultra-gloss, mirror-finish black coatings onto high-end automotive interior trim...view more -
![Water-Borne Paint Automatic Painting Line]()
Water-Borne Paint Automatic Painting LineA water-borne paint automatic painting line is an industrial finishing system engineered to handle the high viscosity and strict humidity requirements of eco-friendly coatings for high-volume...view more
Technical Specifications
|
Parameter |
Engineering Specification & Standard |
|
Max. Component Dimensions |
1800 × 2000 × 900 mm (W × H × D) (Customizable for bumper, body panels, and other automotive components) |
|
Conveyor Pitch & Speed |
Dog Distance: 1000 mm; Carrier Pitch: 2000 mm (Adjustable line speed according to production requirements) |
|
Technical Availability |
≥98% Operational Availability (for Paint Shop and Spray Application) |
|
Production Cycle Time |
Less than 52 seconds per Jig-to-Jig (Optimized through 3D simulation) |
|
Capacity & Operating Regimes |
Up to 24 hours/day, 260 days/year (3 shifts/day); ≥1200 m² painted surface/day |
|
Air Make-Up Unit (AHU) |
Positive-pressure climate control maintaining 23°C ± 3°C and 60% RH ± 10% |
|
Spray Booth Downdraft Velocity |
Minimum 0.35 m/s uniform vertical downdraft airflow in the painting zone |
|
Cleanroom Standard |
Class 10,000 main enclosure with Class 1,000 / Class 100 localized FFU laminar airflow |
Automotive Component Paint Lines
- Airbag Automatic Robot Inline Tracking Painting Line
- Bumper Paint Line
- Grill Paint Shop
- Car Parts Paint Shop
- Car Mirror Paint Shop
- Fuel Lid Rotary Paint Line
- Handle Paint Line
- Robotic Paint Line
Automotive Lamp Coating Systems
- Hard Coating Plant
- Headlight Hardcoat Line
- Headlamp Coating Line
- Antifog Coat Line
- Carlamp IR UV Curing Line
- BMC Base Coat Line
- Interior & Decorative Coating Solutions
- Piano-Black Interior Paint Shop
- Water-Borne Paint Automatic Painting Line
- Water-borne Automatic Paint Line For Automotive Parts
Complete Paint Shop & Production Systems
- Turnkey Paint Shop
- Paint Booth
- 2K Automatic Paint Mixing System
Complete Turnkey Paint Shop Configuration
|
System Module |
Integrated Equipment & Technologies |
|
Surface Pretreatment System |
Power wash degreasing, DI water rinsing, dynamic CO₂ snow cleaning, flame treatment, and ionized dust removal |
|
Robotic Spraying & Paint Supply |
6-axis ATEX explosion-proof robots, electrostatic rotary bells, HVLP spray guns, and automatic 2K paint mixing systems |
|
Drying & Curing System |
IR leveling tunnels, hot-air convection ovens, nitrogen-purged UV curing chambers, and cooling zones |
|
Conveyor & Material Handling |
Power & free overhead conveyors, floor skids, turntables, transfer robots, and RFID workpiece tracking |
|
Environmental Control System |
VOC treatment systems (RTO / carbon concentrators), dry/wet filtration units, and wastewater treatment solutions |
Automated Painting Process Flow
Pretreatment → Drying / Flash-Off → Robotic Spraying → Leveling → Curing → Quality Inspection → Packaging / Assembly
Production Advantages
Higher First-Pass Yield (FPY ≥92–95%)
Cleanroom filtration, ionized dust removal, and precise environmental control reduce rework rates and surface defect risks.
Fast Color Change Capability (<15 Seconds)
Automatic valve blocks with solvent-air pulse cleaning enable rapid color switching while reducing paint and solvent waste.
Multi-Material Production Flexibility
Siemens PLC-based recipe management supports quick switching between PP, ABS, PC/ABS, BMC, metal, and composite components.
Safety & Environmental Compliance
ATEX explosion-proof components, VOC treatment systems, and emission control solutions support international safety and environmental requirements.
Pre-Shipment Validation (FAT)
Complete assembly, 72-hour continuous mechanical dry runs, PLC automation logic verification, and airflow balance testing (≥0.35 m/s) are performed at our 10,000 sqm facility before shipment.
Process & Parameter Audits
Sensor calibration, curing oven temperature uniformity testing, and fluid delivery pressure verification are conducted to ensure stable production performance.
Quality Management Certifications
Equipment is manufactured under ISO9001, ISO14001, and ISO45001 management systems, with ATEX/IECEx explosion-proof solutions available for hazardous spray areas.
20+ Years of Turnkey Coating Experience
Since 2005, we have delivered thousands of automated coating lines worldwide across automotive, electronics, and heavy machinery industries.
Trusted by Global OEMs & Industry Leaders
Proven project success with world-class brands like BYD, BASF, Yanfeng, and Marelli, backed by partnerships with Siemens, Fanuc, and ABB.
Complete In-House Manufacturing Base
Headquartered in Shenzhen with a modern production plant in Heyuan, offering full-process capability from R&D to fabrication and testing.
Smart Controls & Proprietary Patents
Holding multiple patents for automated spraying, our systems feature real-time paint flow monitoring, MES integration, and 24/7 remote troubleshooting.
Global Engineering Experience
With projects delivered across 20+ countries, our engineering teams support international customers with localized installation, commissioning, and technical services.
Global Delivery & Technical Support
Export Packaging & Shipping
Control cabinets and precision components are protected with vacuum-sealed anti-static and moisture-proof packaging. Heavy structures are secured in ISPM-15 certified wooden crates with optimized container loading.
On-Site Installation & SAT Commissioning
Field engineers support mechanical assembly, electrical integration, robot parameter adjustment, site acceptance testing (SAT), and operator training. Typical commissioning takes 3–4 weeks.
Remote Support & Warranty
Includes a 12-month global warranty, 24/7 remote diagnostic support (<2-hour response time), and spare parts assistance using globally standardized brands such as Siemens, Fanuc, ABB, and SMC.
